Big Bag Filling System
Net Weight & Gross Weight Models
This Big Bag Filling System is engineered for efficient, high-accuracy filling of FIBC (Flexible Intermediate Bulk Containers), commonly known as big bags. Ideal for powdered or granular products, the system is designed to ensure clean, consistent, and fully expanded bag filling, with configurations available in both net weight and gross weight modes to suit different operational preferences.
From the feeding hopper, the product is discharged through a bottom-mounted valve into the bag, which is manually positioned by the operator at the filling spout. An integrated air blower inflates the bag before the filling process begins, ensuring the full extension of the bag and optimal fill distribution. Weight and flow rate are monitored and controlled throughout the process by a precision control unit for maximum accuracy and repeatability.

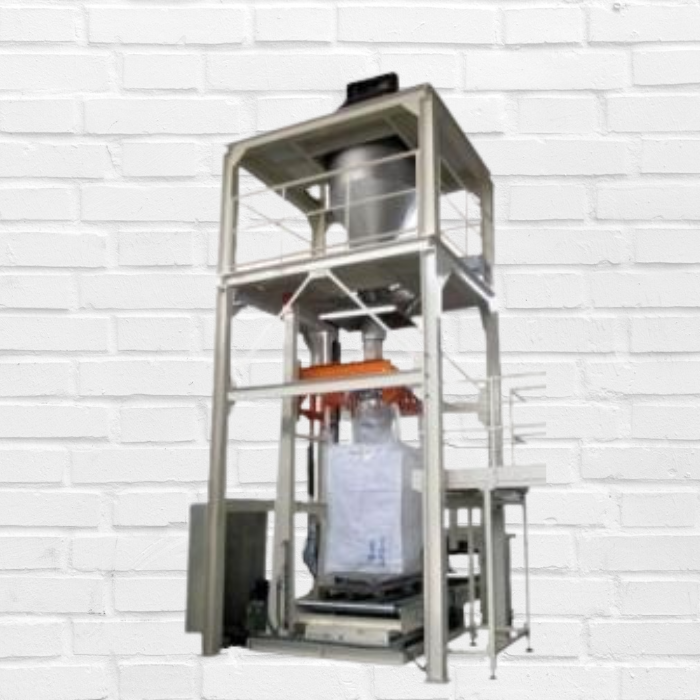

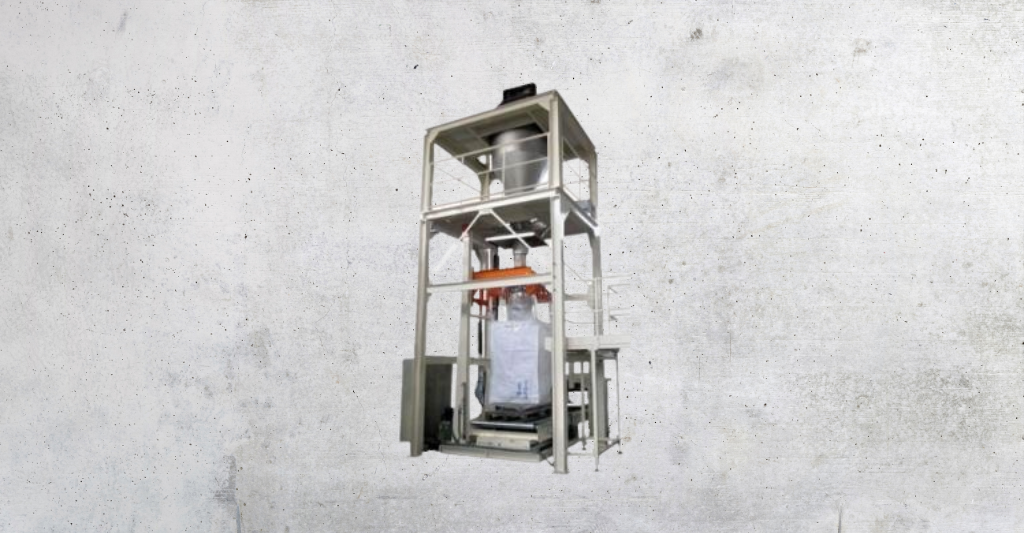

Net Weight Model – High-Speed, Pre-Weighing Precision
- Output: Up to 150 big bags/hour
- Big Bag Dimensions: 1100 x 1100 x 2000 mm (H)
- Installed Power: 10 kW
- Air Consumption: 150 NL/cycle at 6 bar
- Best for: High-speed operations with demanding throughput and accuracy requirements
Gross Weight Model – Direct Weighing Simplicity
- Output: Up to 70 big bags/hour
- Big Bag Dimensions: 1000 x 1000 x 2000 mm (H)
- Installed Power: 5.5 kW
- Air Consumption: 60 NL/cycle at 6 bar
- Best for: Medium-speed applications prioritizing operational simplicity and compact design
Key Features:
- Accurate dosing with flow rate and weight control
- Inflation blower for full bag expansion before filling
- Operator-guided manual bag positioning at filling spout
- Available in both Net and Gross Weight configurations
- Clean, dust-controlled filling process
