Specialized Side-Sealing for Circular and Irregular Package Shapes

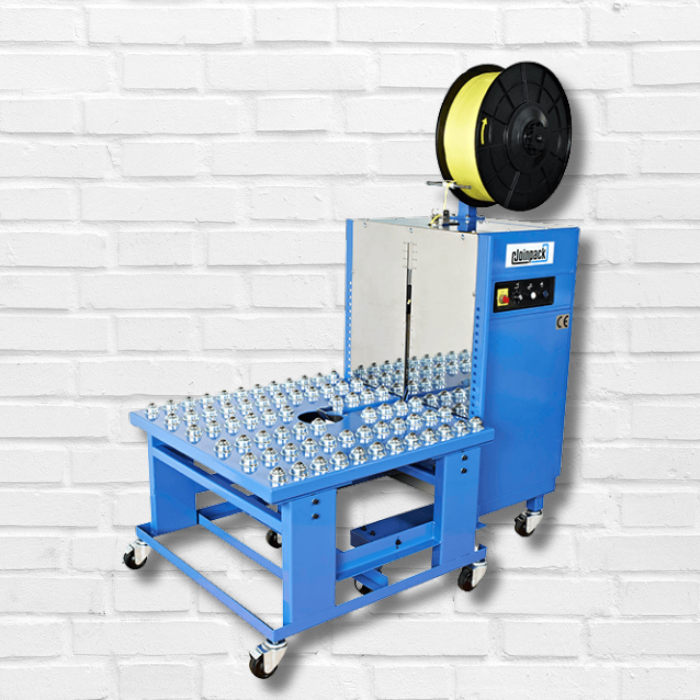

S-315Y* – Side Sealing Strapping Machine with Working Table
The S-315Y* series is a specialized side-sealing strapping machine designed for circular or irregular products such as coiled wires, tires, tubing, and donut-shaped packages. Equipped with a working table for support and ease of handling, the S-315Y* offers seamless integration into conveyor lines or existing packaging systems, making it an ideal solution for manufacturing, logistics, and automotive industries.
Powered by AC motors with a chain and cam transmission, this machine ensures durability, low maintenance, and simple operation. It comes in two models:
- S-315YT (Standard Model)
- S-315YM (Stainless Steel Model) – ideal for cleanroom or high-hygiene environments
Tailored for Circular Packaging Needs
The side sealing design accommodates products that are difficult to strap with conventional top-sealing machines. With mechanical tension control and adjustable strap width settings, the S-315Y* handles a range of packaging sizes with consistency and care.
Key Features – S-315Y* Series:
Side Sealing Configuration for donut-shaped and irregular items
Mechanical Tension Control: 15–45 kg range
Strap Widths:
- S-315YT: 12 & 15.5 mm
- S-315YM: 9, 12, 15.5 mm (adjustable)
Stainless Steel Option: Available in S-315YM for food, pharma, or cleanroom use
Energy Saving: Automatic motor shutoff during idle
Reliable Microprocessor PCB Control for stable performance
Low Maintenance: Traditional chain and cam system
Specifications Overview
| Model | S-315YT (Standard) | S-315YM (Stainless Steel) |
|---|---|---|
| Cycle Time | 5 sec/strap | 2.5 sec/strap |
| Tension Range | 15–45 kg | 15–45 kg |
| Strap Width | 12, 15.5 mm (adjustable) | 9, 12, 15.5 mm (adjustable) |
| Sealing Method | Heating element | Heating element |
| Reel Inner Diameter | 200 / 230 / 280 mm (specified) | 200 / 230 / 280 mm (specified) |
| Power Supply | 110–240V, 50/60 Hz, 1PH | 110–240V, 50/60 Hz, 1PH |
| Power Consumption | 0.77 kW | 0.4 kW |
| Table Height | 800 mm | 780 mm |
| Machine Dimensions (L x W x H) | 1300 x 800 x 1625 mm | 880 x 675 x 1625 mm |
| Machine Weight | 120 kg | 78 kg |
